K2000 Polyurethane PU Spray Foam Insulation Machine for Roof Coating

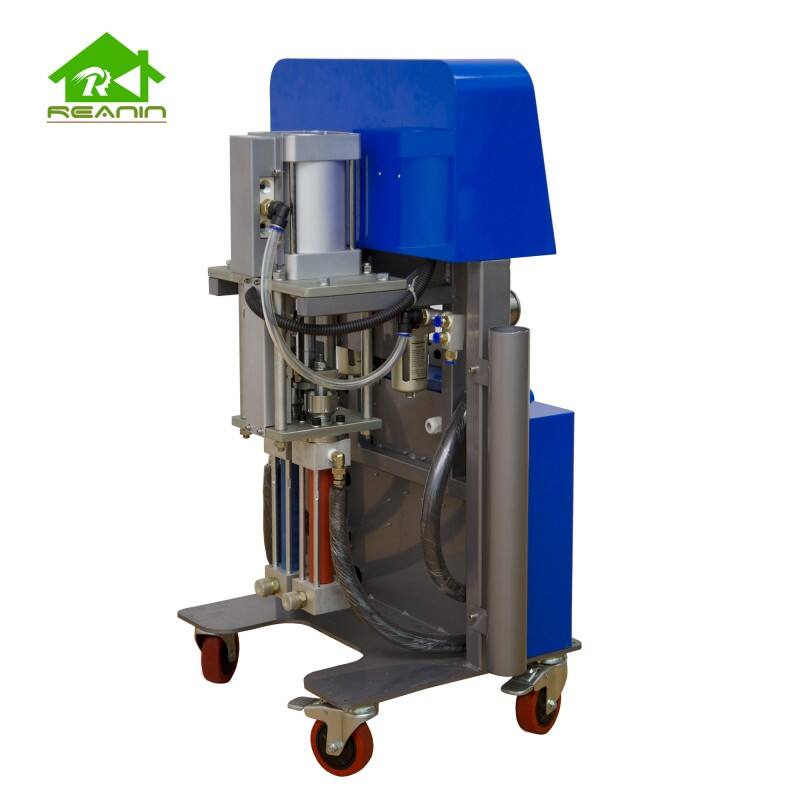

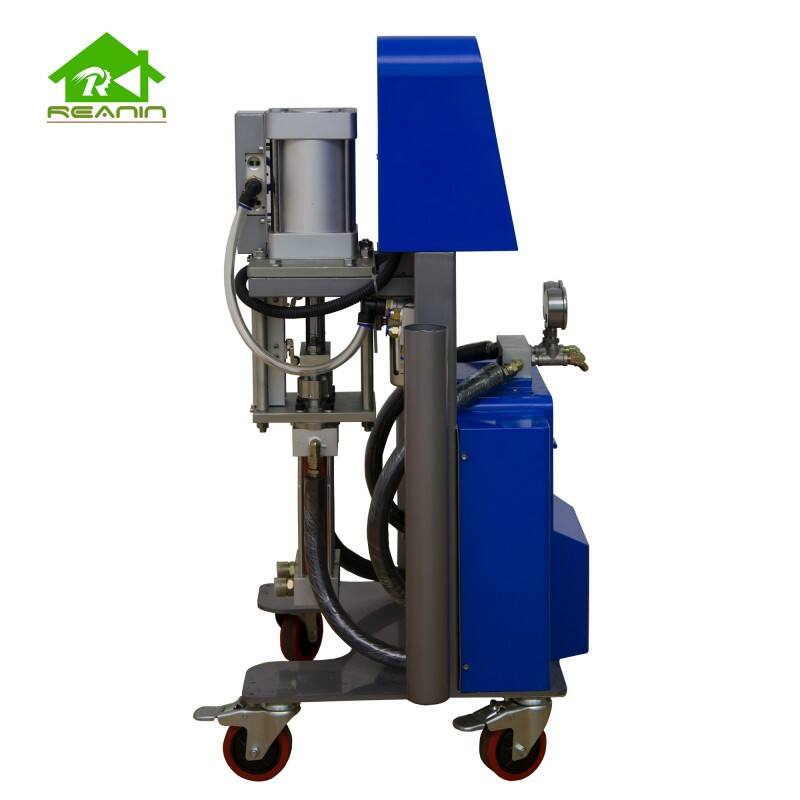

K2000 Polyurethane Spray & Injection Foam Insulation Machine
A cost-effective, portable, and easy-to-use spraying and injection system designed for two-component polyurethane applications. Compact and user-friendly, the K2000 is ideal for small to medium-scale projects requiring precision, efficiency, and reliable performance.
Description
Specifications:
| Model | K2000 Polyurethane Spray Machine |
| Applicable materials | Polyurethane |
| The ratio of raw material | 1:1 |
| Viscosity range of raw materials | 200-1000 CPS (under working temperature) |
| Max working pressure | 20MPa |
| Max fluid temperature | 80°C |
| Max output | 10kg/min |
| Max heated hose length (optional) | 60m |
| Heater power | 4500Wx2 |
| Heated hose max power | 2000W |
| Drive mode | Full pneumatic |
| Clean mode | Self-cleaning by air |
| Voltage (optional) | 2 wires Single phase 220V 50Hz or 4 wires Three phase 380V 50Hz |
| Whole power | 11kw |
| Pneumatic source | 0.5-0.8Mpa Im3/min |

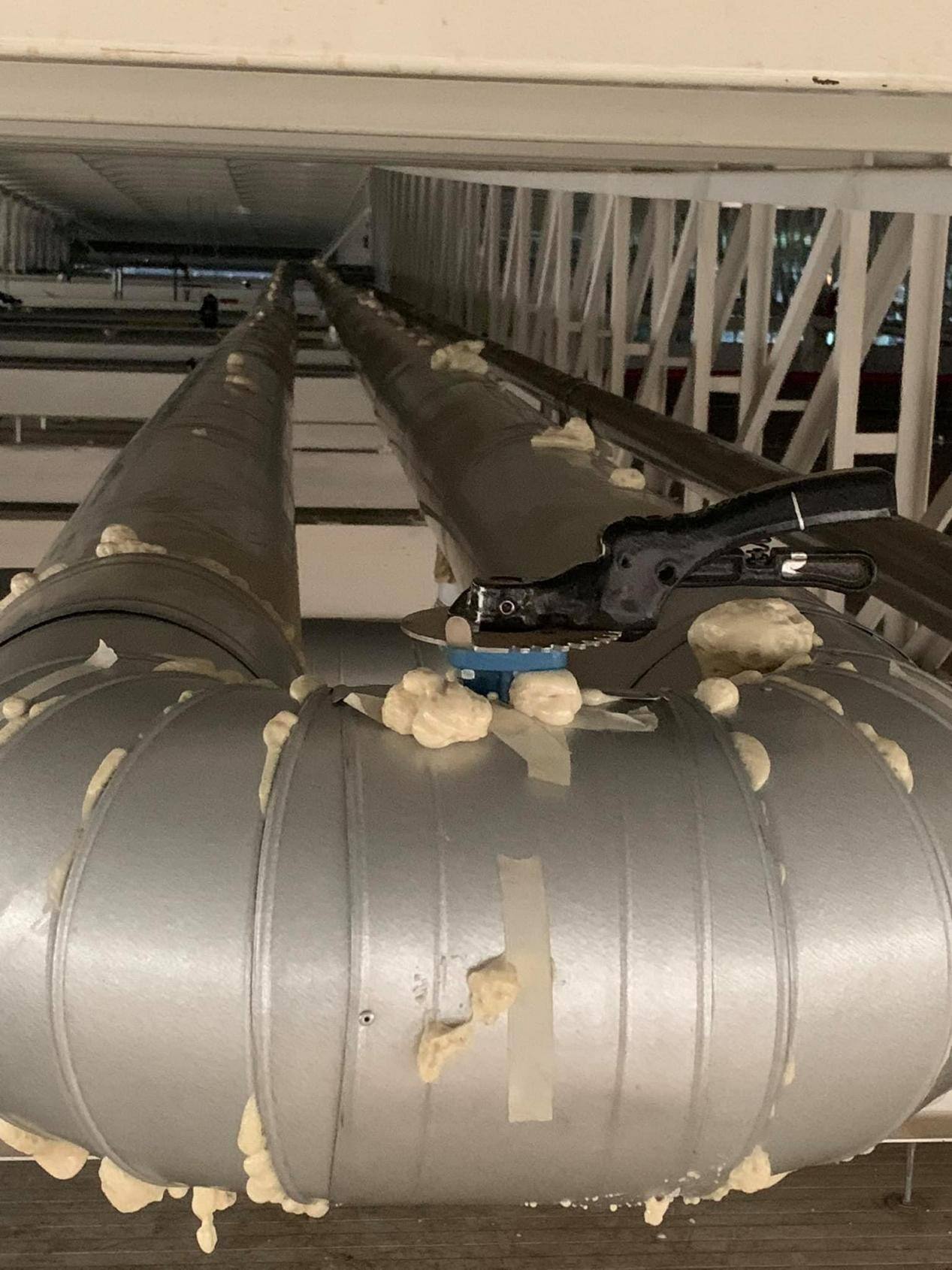

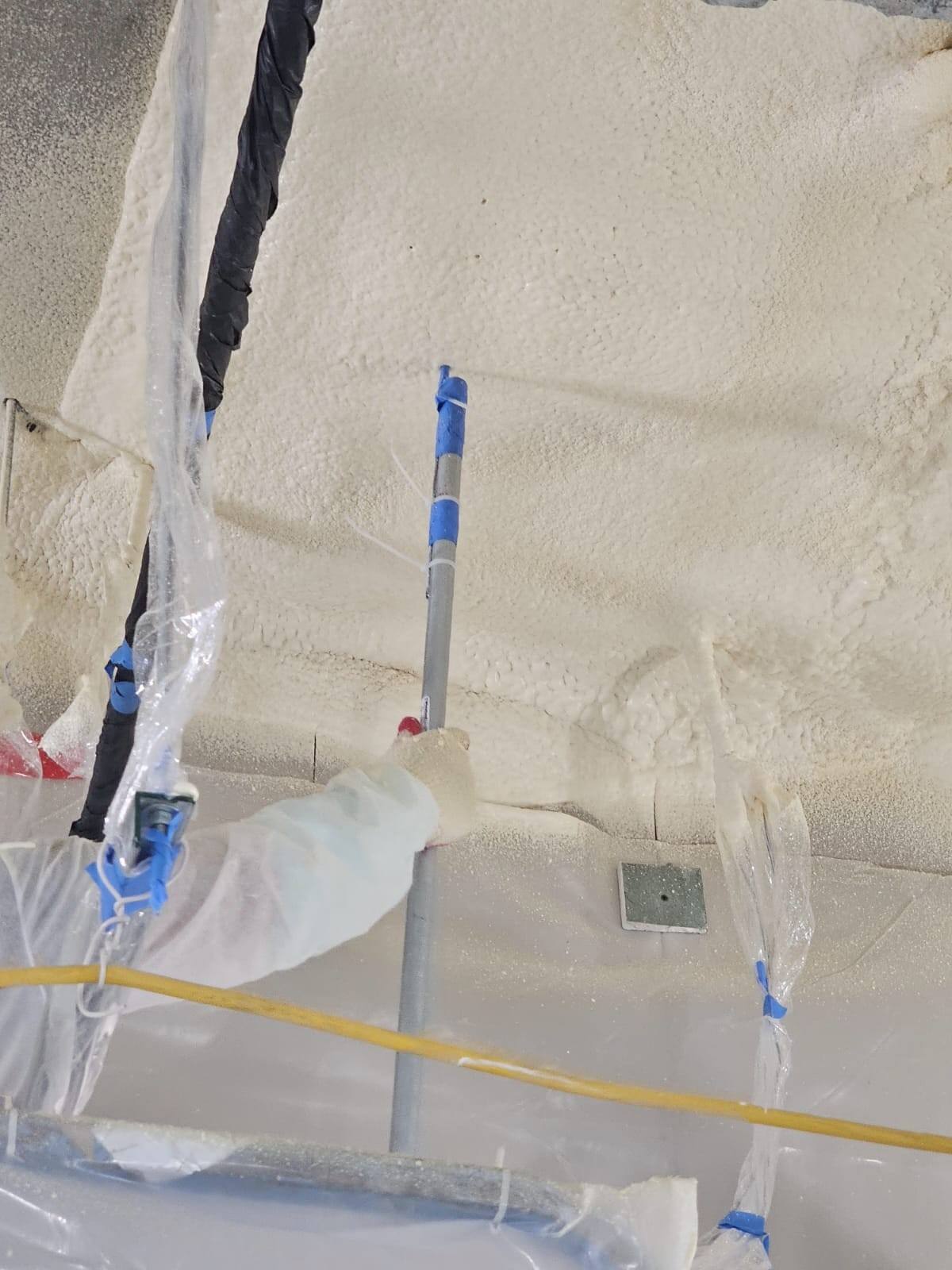

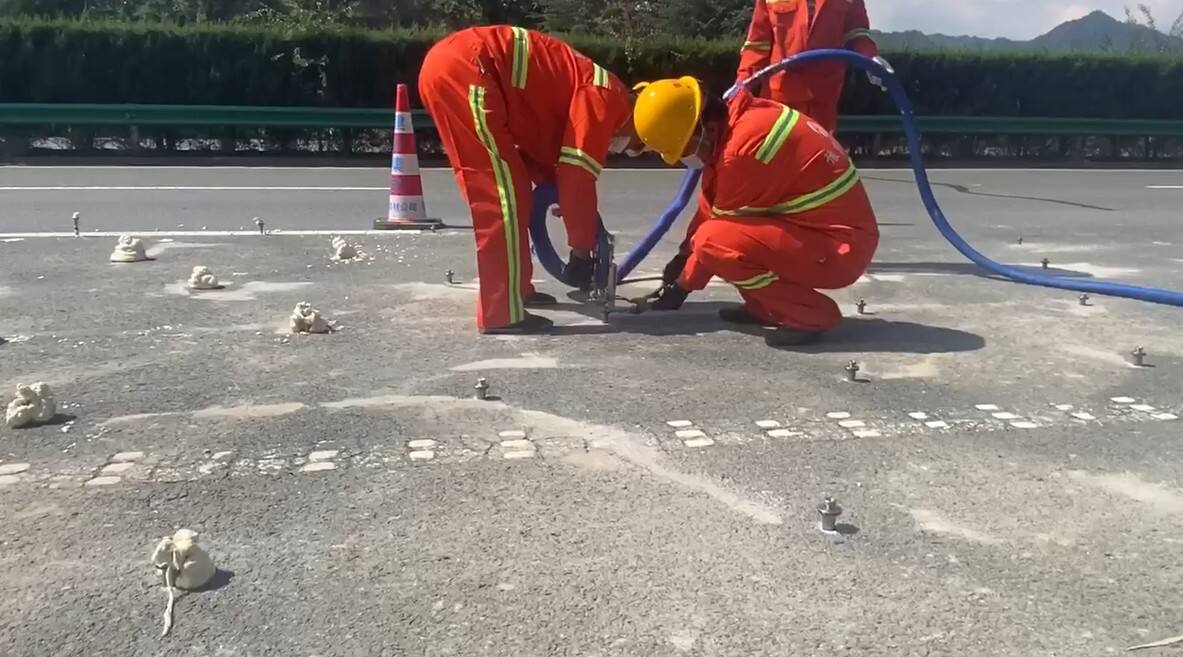

Applications:
Video：
Advantages：
• This machine has pass the CE Certificate,
• Panel with operation tips is easy to set up,
• Fully pneumatic design, it can work normally without electricity(the ambient temperature is around 30 degrees),
• The booster pump is simple in structure and easy to disassemble and maintain,
• The stop reset function can make the booster pump shafts always infiltrated in the booster pump, which can avoid
damage to the seals and booster pump shafts caused by ISO crystallization,
• A/B/Hose independent temperature control, can set different temperatures separately, adapt to the temperature
requirements of different material,
• Variable frequency temperature control mode and special real-time temperature collection sensor ensure that the
material temperature is controlled within a small fluctuation range,
• The integrated heated hose is covered with wear-resistant insulating sleeve, which not only can effectively keep the
temperature ofthe material, but also can prevent the occurrence of leakage, short circuit, etc.
• The transfer pumps, mainframe and spray gun are equipped with filtering devices, which can effectively filter
impurities and crystals in the materials and reduce the occurrence ofthe blocking gun,
• High-precision pressure gauges are available in MPa and PSI to meet the needs of different customers,
• Equipped with an action counter to accurately calculate the amount ofraw materials,
• The spray gun is made of alloy material, light weight, less wearing parts, easy to use and maintain.
FAQ：
Q: Where is your company? Are you the manufacturer?
A：Yes, We are manufacturer, located in Jinan city, Shandong province.
Q: What's the warranty on this machine?
A: We provide one year warranty, and support lifelong consultant service.
Q: How can I get the spare parts for the machine?
A: We will send a set of additional spare parts along with the goods. International express is available when needed, which usually arrives in about 7 days.
Q:Is it in stock? When is the delivery date?
A: We will send the machine out within 7-10 days after receiving your payment, (Excluding customized products).
Q: I am new at this, How to use the machine?
A: Our machine is easy to opperate, we provide user manual and videos,We offer online guidance services.
Q:What certificates do you have?
A： ISO9001 Quality Management System Certificate； CE certificate，etc.
Q：Can I add my own logo? Can I resell your products locally?
A：Yes,sure. We provide customized services, including Logo, appearance, color, model, etc.
You can distribute our products locally, welcome to join us and become our agent.
Q: What parts are included in one set machine？
A: Standard Configuration for one set machine： 1 set mainframe, 1 set spray gun, 2 sets transfer pump, 15m heated hose，2 pcs transfer pump hose, 2 pcs whip hose, 1 set air pipe, 1 set tools and spare parts, 1 set English user manual.
Q：How long of heated hoses can be connected ?
A：It’s depends on your projects. It comes with 15m hose for each machine, some model can be connected max 90m-120m hose.
Q: How to clean and maintain the machine?
A: It divided into daily maintenance and long-term maintenance.
Please refer to the maintenance and care section of the user manual for details.
