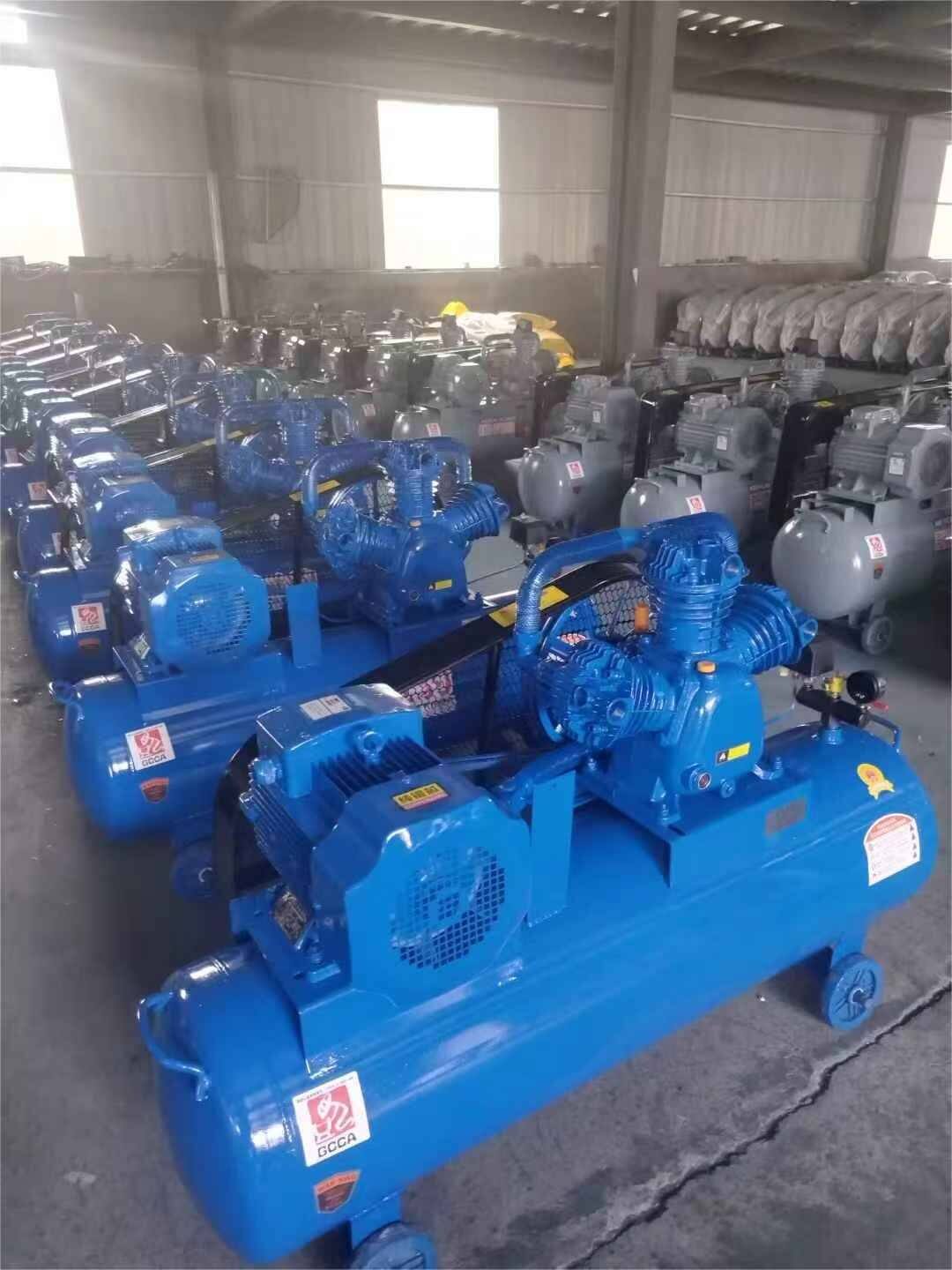

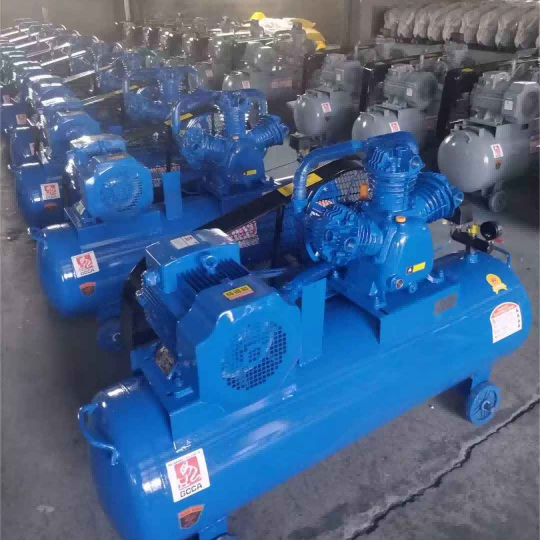

Industrial Electric Piston Air Compressor
The Air Compressor is engineered to deliver high-performance air power for demanding industrial applications. Designed with precision and built for durability, this compressor is an ideal power source for polyurethane and polyurea spray machines, ensuring consistent and reliable operation in challenging environments.
Description
Applications:
Air Compressor as the critical power source for advanced material application technologies. Specifically designed to support both pneumatic polyurethane foam spray machines and hydraulically-driven polyurea/polyurethane spraying equipment, this compressor delivers the consistent, high-quality air supply essential for achieving optimal results.
In the realm of polyurethane and polyurea applications, the compressor is more than just an accessory; it is the core of the spray system. It provides the precise air pressure and volume necessary for:
Proper material atomization.
Controlled chemical reaction and curing.
Flawless surface finish and coating integrity.
By ensuring a stable and reliable air source, Air Compractor becomes an indispensable component in these high-performance processes, directly impacting the efficiency and quality of the final application in construction, insulation, and protective coating projects.
Specifications:
| Power | 7.5 Kw and 10 HP |
| Power Supply | Three phase 380V /220 |
| Speed | 920 Rpm |
| Cylinder | Φ90x3 (diameter x quantity) |
| Exhaust pressure | 0.8/1.25Mpa |
| Exhaust volume | 0.9m³/min |
| Gas storage capacity | 180L • Weight：190 KG |
| External Dimensions | 1470x540x1000 L×W×Hmm |
Competitive Advantage:
• Increased wall thickness and large volume box, low internal pressure, high-end appearance. Smooth lines, avant-garde design, reasonable layout, safety protection, compact structure.
• The cylinder is made of wear-resistant cast iron material, with increased wall thickness and
multi-blade design, high wear resistance, small temperature deformation and good heat
dissipation effect.
• Ductile iron crankshaft is used, with high fatigue strength. Good vibration absorption, the crank
tip is treated with high-frequency fire, good wear resistance and minimal vibration.
• The connecting rod is made of high-quality alloy with high strength and good stability. It has
extremely high compression stability, light weight and small inertia force.
• The piston is made of high-strength cast aluminum alloy with sufficient strength and hardness.
• The enlarged protruding oil mirror makes it easier to observe the oil level.
• The closed protective cover improves safety protection
